Helixes for TSS-04 TEAM Rapid Response Secondary

Description

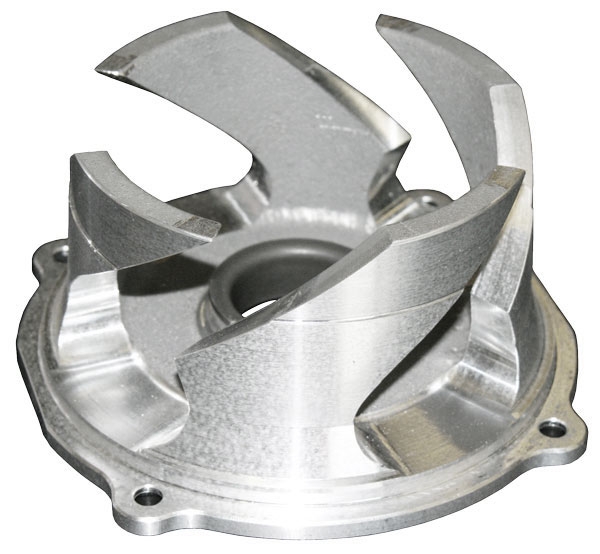

These helixes are for TSS-04 Rapid Reaction™ Secondary Clutches. Helixes designated with an S are straight angle and those with a .33, or .36 or .46 are multi-angle with the first angle being 0.330, 0.360 or 0.460 long.

Which clutch do I have?
A quick reference to identify which clutch you have is to look at the helix. If it is fastened to the clutch with 8 torx screws it is the TSS-98, if it fastened to the clutch with 4 torx screws it is the TSS-04.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Additional information

Weight	N/A
Dimensions	7 × 7 × 3.5 in
Helix Angles	40-46ER.36 / 42-48ER.36 (Part #50-146), 44S ER / 42S ER (Part #50-76), 48S ER / 50S ER (Part #50-124), 54-38ER.46 / 54-40ER.46 (Part #50-107), 56-38ER.36 / 56-40ER.36 (Part #50-119), 56-40ER.36 / 56-42ER.36 (Part #50-120), 58-38ER.36 / 58-40ER.36 (Part #50-121), 58-38ER.46 / 58-40ER.46 (Part #50-80), 58-42ER.46 / 58-44ER.46 (Part #50-83), 60-38ER.36 / 60-40ER.36 (Part #50-122), 60-38ER.46 / 60-40ER.46 (Part #50-85), 60-42ER.36 / 60-40ER.36 (Part #50-144), 60-42ER.36 / 60-44ER.36 (Part #50-123), 62-42ER.36 / 62-40ER.36 (Part #50-147), 62-42ER.36 / 60-42ER.36 (Part #50-148), 62-42ER.46 / 62-44ER.46 (Part #50-86), 64-40ER.36 / 62-40ER.36 (Part #50-175), 64-42ER.36 / 60-42ER.36 (Part #50-149), 64-42ER.36 / 62-42ER.36 (Part# 50-160), 66-44ER.46 / 66-46ER.46 (Part #50-111), 64-42ER.36 / 64-40ER.36 (Part #50-174), 66-44-42ER / 70-46-42ER (Part #50-89)
Dimension Height	3.5000
Dimension Length	7.0000
Ship Separately	No
Dimension Width	7.0000
Product can be split into multiple boxes	No
